Verified Product Portfolio

BMS Products for Energy Storage, Mobility, Robotics and Industrial Power

Explore real product categories and model ranges based on supplier product materials. Product photos are shown for visual reference and can be updated as verified photos become available.

Residential Energy Storage BMS Communication Base Station BMS Lead-Acid Conversion BMS Start-Stop BMS Robotics BMS Ship BMS

Residential Energy Storage BMS

For household energy storage and low-voltage power stations

Designed for LiFePO4, NMC and sodium-ion battery packs. Suitable for 8–16S battery systems with RS485 / RS232 / CAN communication, optional IoT, Bluetooth, Wi-Fi and 4G.

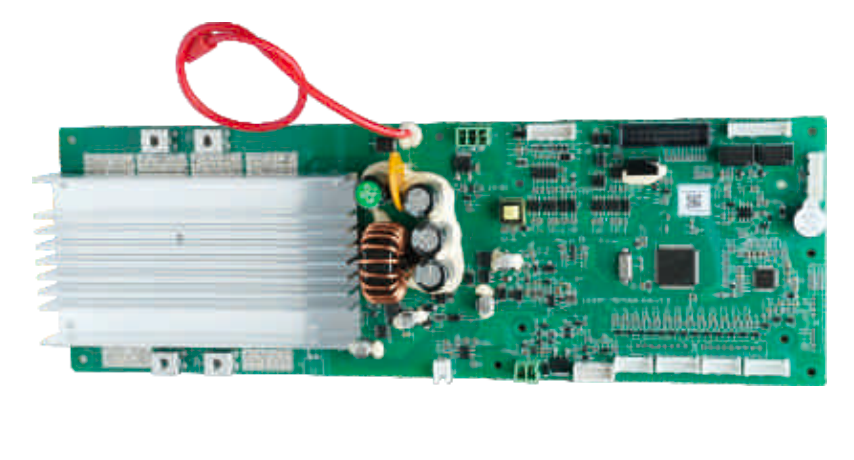

JunPowerTech LX3081 residential energy storage BMS for 8S to 16S LiFePO4 battery packs

LX3081

Residential Energy Storage BMS

  • Dimensions: 300 × 100 × 34 mm
  • Series: 8–16S
  • Continuous current: 50–100A
  • Charge current limit: 10A
  • Passive balancing, 80–100mA

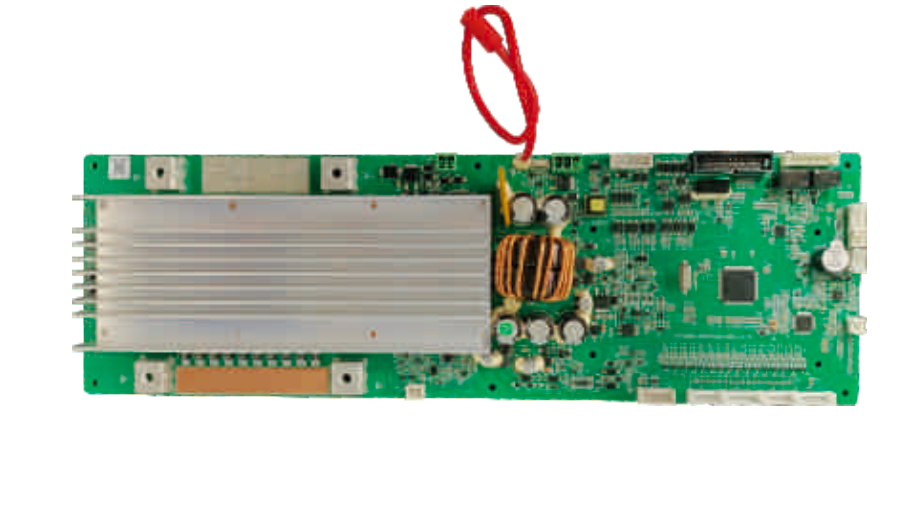

JunPowerTech LX3082 residential energy storage BMS with 150A to 200A continuous current

LX3082

Residential Energy Storage BMS

  • Dimensions: 350 × 110 × 37 mm
  • Series: 8–16S
  • Continuous current: 150–200A
  • Charge current limit: 20A
  • Passive balancing, 80–100mA

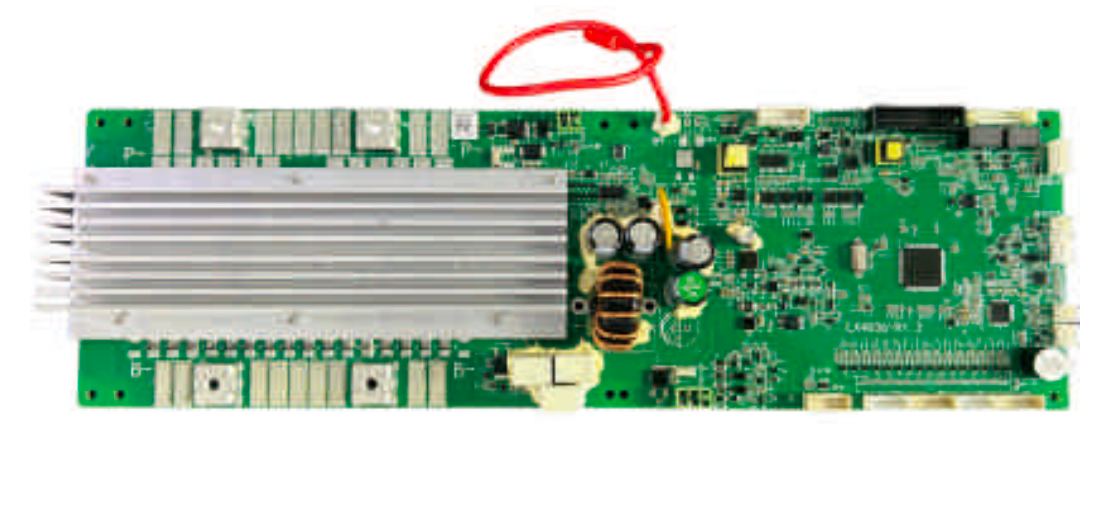

JunPowerTech LX4036 high current energy storage BMS with 250A to 300A continuous current

LX4036

High Current Energy Storage BMS

  • Dimensions: 360 × 110 × 40 mm
  • Series: 8–16S
  • Continuous current: 250–300A
  • Charge current limit: 10A
  • Passive balancing, 80–100mA

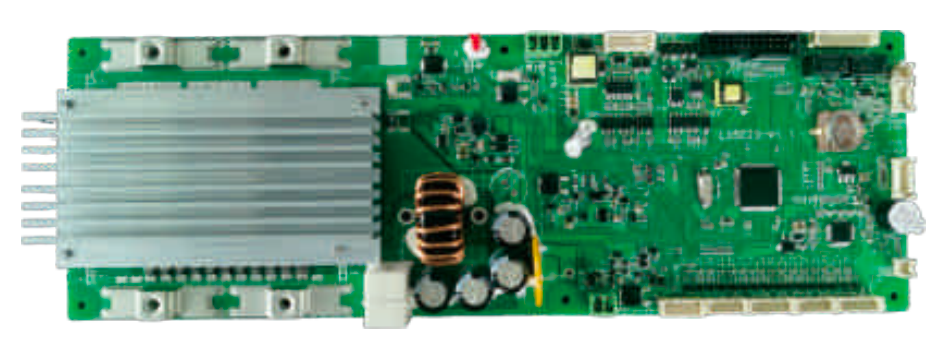

JunPowerTech LX5023 residential energy storage BMS for 8S to 16S LiFePO4 battery packs

LX5023

Residential Energy Storage BMS

  • Dimensions: 300 × 100 × 34 mm
  • Series: 8–16S
  • Continuous current: 50–200A
  • Charge current limit: 10A
  • Passive balancing, 80–100mA

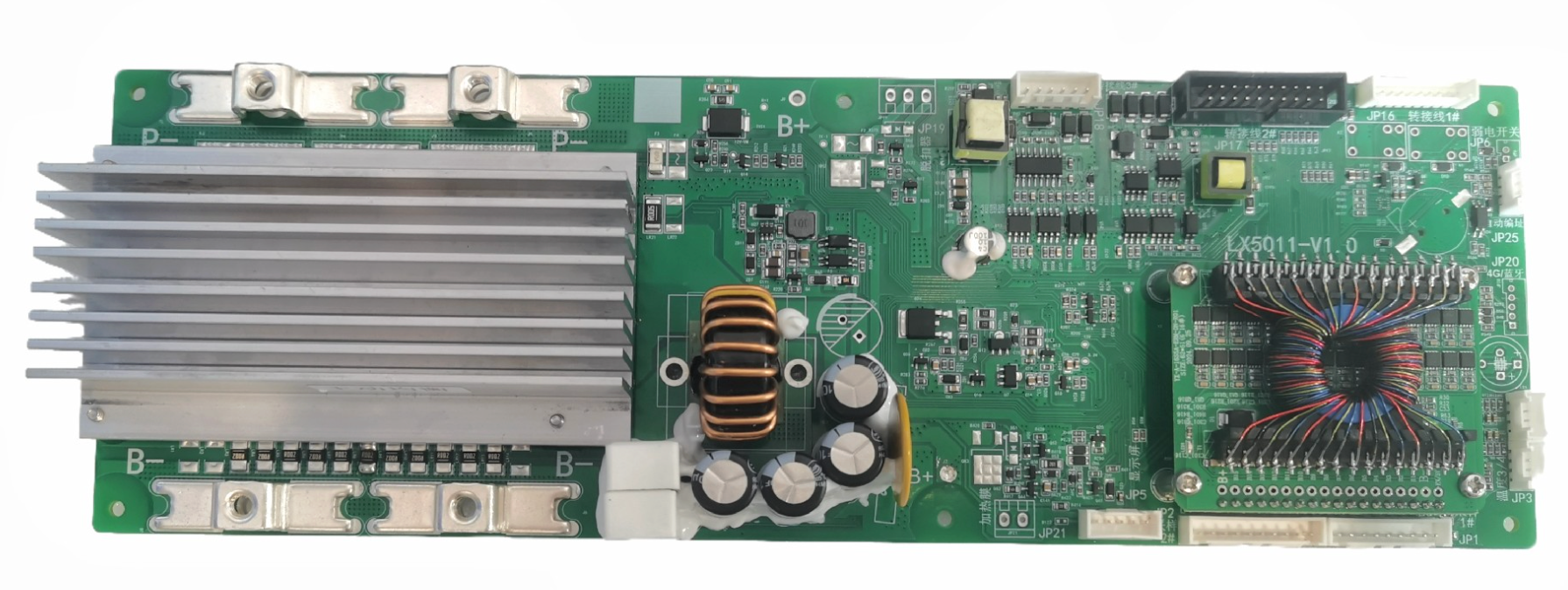

JunPowerTech LX5011 active balancing energy storage BMS with 5A balancing current

LX5011

Active Balancing Energy Storage BMS

  • Dimensions: 300 × 100 × 34 mm
  • Series: 8–16S
  • Continuous current: 50–200A
  • Charge current limit: 10A
  • Active balancing, 5A
NMC / LFP / SIB Same Port -40~80°C ±5mV Voltage Accuracy RS485 / RS232 / CAN Mini Program / BLE / Wi-Fi / 4G

Communication Base Station BMS

For base station backup, outdoor power and low-voltage power stations

BMS models for telecom backup and base station applications, supporting wide temperature operation, isolated communication and wireless monitoring options.

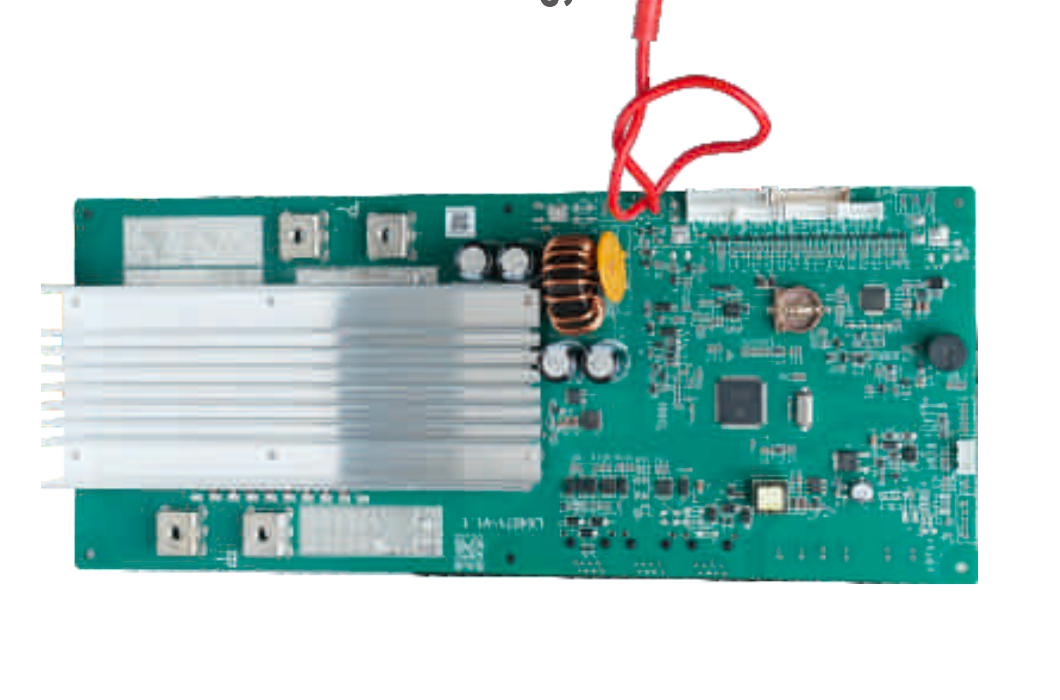

JunPowerTech LX4071 communication base station backup power BMS for 8S to 16S battery systems

LX4071-V1.1

Base Station Backup Power BMS

  • Dimensions: 300 × 125 × 40 mm
  • Series: 8–16S
  • Continuous current: 50–150A
  • Charge current limit: 10A
  • RS485 communication, optional CAN/RS232

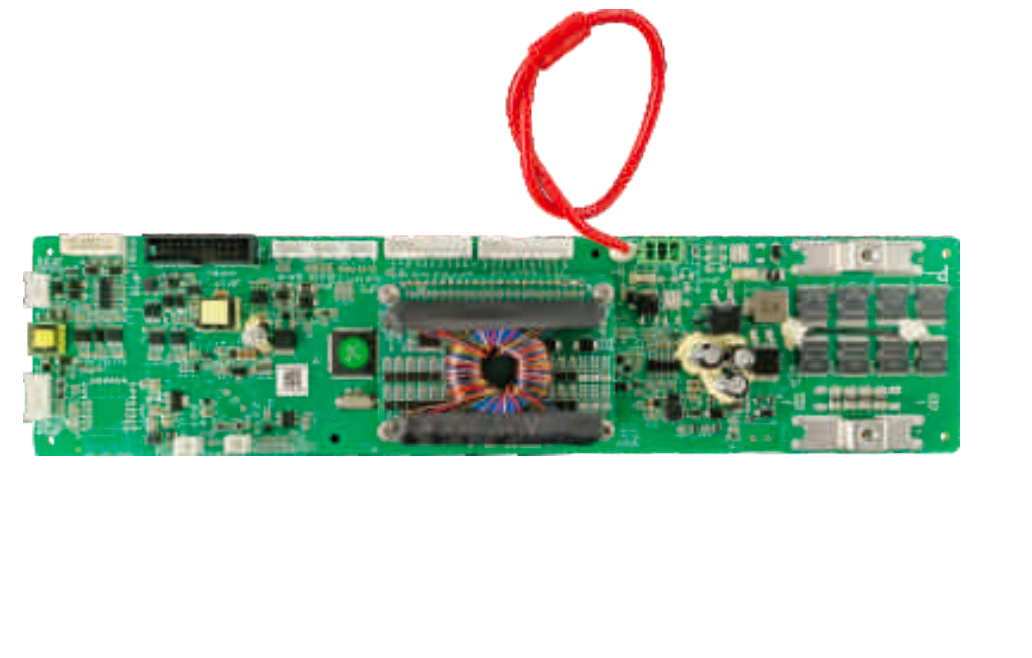

JunPowerTech LX5043 telecom backup power BMS for 16S to 20S lithium battery packs

LX5043-V1.1

Base Station Backup Power BMS

  • Dimensions: 300 × 70 × 30 mm
  • Series: 16–20S
  • Continuous current: 50–70A
  • Charge current limit: 2A
  • RS485 / RS232 / CAN communication
Base Station Backup Industrial Equipment Outdoor Base Stations Auto Addressing Mini Program / BLE / Wi-Fi / 4G

Balcony Photovoltaic BMS

Compact BMS for balcony PV and small energy storage systems

Designed for compact photovoltaic storage systems with communication, 5V/1A output, low-voltage switch and optional protection modules.

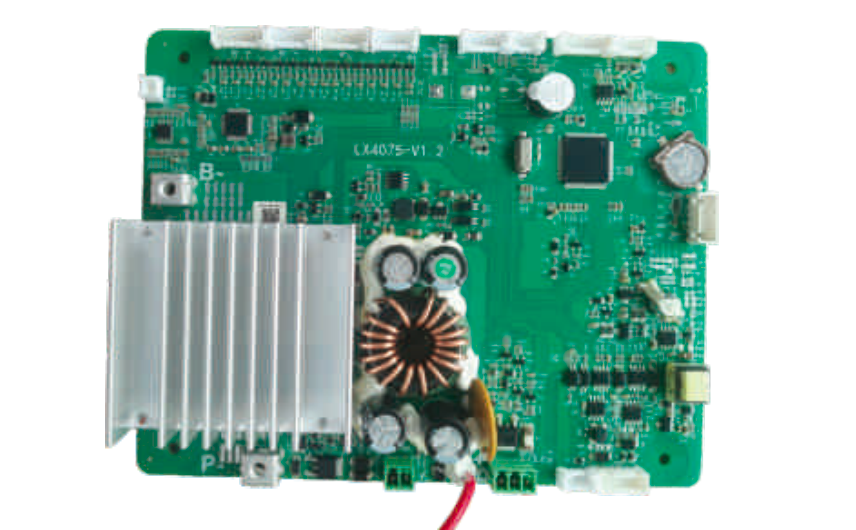

JunPowerTech LX4075 BMS with CAN and RS485 communication for compact energy storage systems

LX4075-V1.0

Balcony Photovoltaic BMS

  • Dimensions: 255 × 90 × 33 mm
  • Series: 8–16S
  • Continuous current: 50–80A
  • Charge current limit: 10A
  • 1 × RS485, 1 × CAN communication
  • Optional LCD, dry contact, heating film and lightning protection module
5V/1A Output Port Low-Voltage Switch Auto Addressing External 6-LED Status Indicators

Lead-Acid to Lithium/Sodium Conversion BMS

For battery retrofit, light electric vehicles and mobile power systems

Retrofit-optimized BMS products designed for replacing lead-acid batteries with lithium-ion or sodium-ion solutions. Supports wide battery chemistries and compact installation.

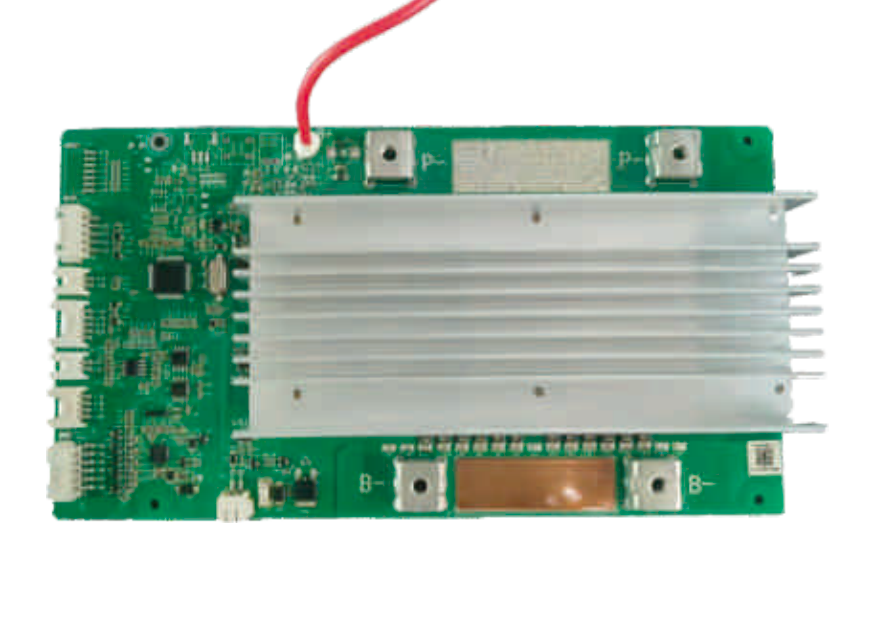

JunPowerTech LX3102 lead-acid replacement BMS for 3S to 5S lithium battery packs

LX3102-V1.0

Lead-Acid Conversion BMS

  • Dimensions: 221 × 120 × 33 mm
  • Series: 3–5S
  • Continuous current: 100–200A
  • Passive balancing, 80–100mA
  • RS485 communication
  • Mini Program / BLE / Wi-Fi / 4G optional

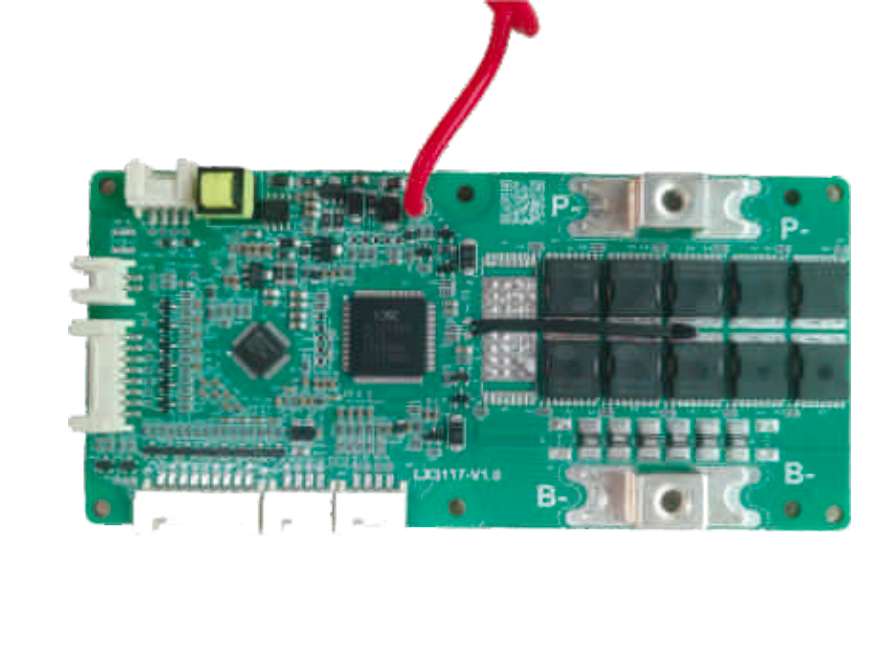

JunPowerTech LX3117 lead-acid replacement BMS for 7S to 16S battery packs

LX3117-V1.0

Lead-Acid Conversion BMS

  • Dimensions: 140 × 65 × 15 mm
  • Series: 7–16S
  • Continuous current: 30–80A
  • Passive balancing, 80–100mA
  • UART communication

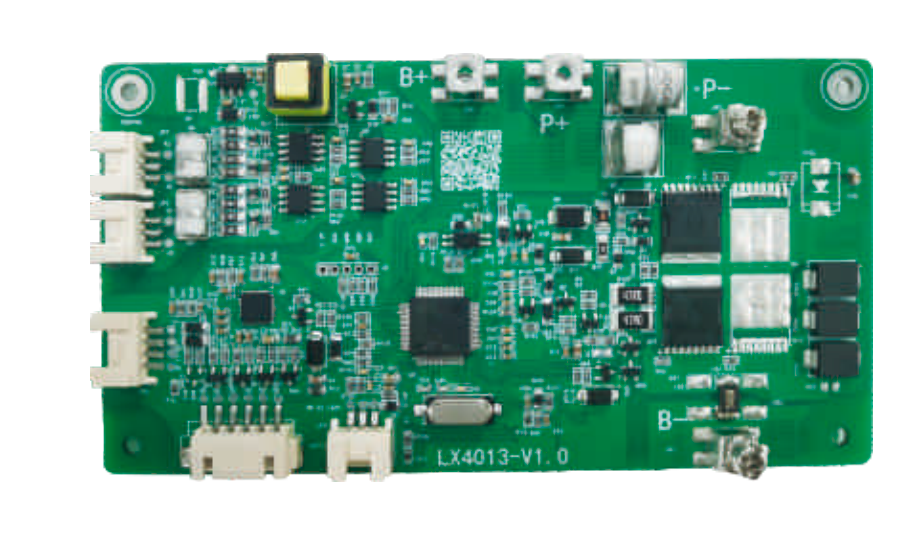

JunPowerTech LX4013 lead-acid to lithium conversion BMS

LX4013-V1.0

Lead-Acid Conversion BMS

  • Dimensions: 130 × 70 × 20 mm
  • Series: 3–5S
  • Continuous current: 5–30A
  • Passive balancing, 80–100mA
  • 2 × RS485 communication

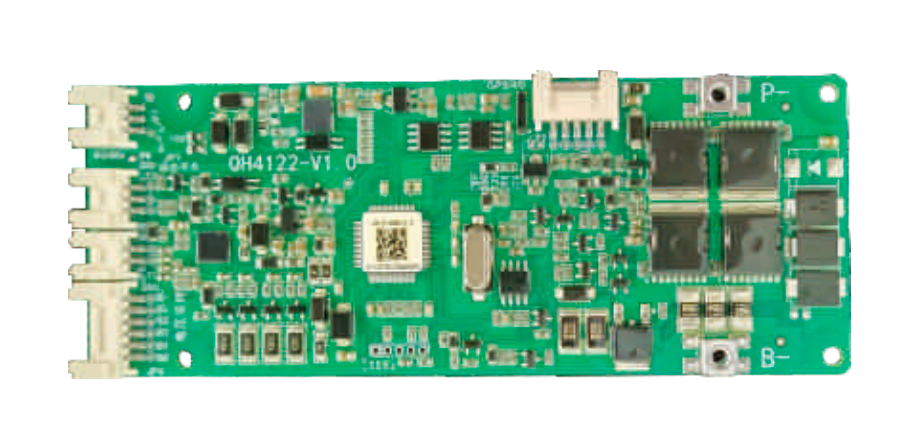

JunPowerTech LX4122 lead-acid replacement BMS with RS485 communication

LX4122-V1.0

Lead-Acid Conversion BMS

  • Dimensions: 130 × 50 × 10 mm
  • Series: 3–5S
  • Continuous current: 15–30A
  • RS485 communication
  • Bluetooth BLE / 4G-GPS optional

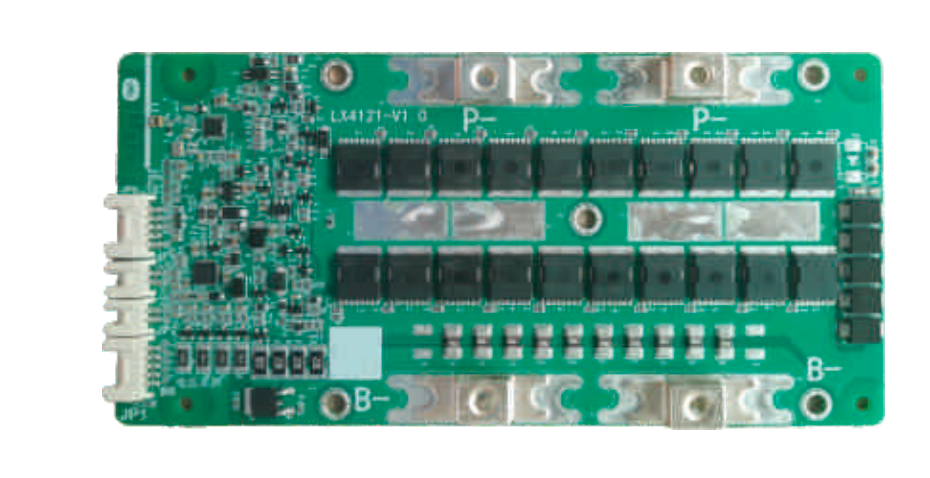

JunPowerTech LX4121 4S lead-acid replacement BMS with 100A continuous current

LX4121-V1.0

Lead-Acid Conversion BMS

  • Dimensions: 175 × 85 × 5 mm
  • Series: 4S
  • Continuous current: 100A
  • Passive balancing, 80–100mA
  • UART communication
  • Bluetooth BLE optional
NMC / LFP / SIB Same Port Low-Voltage Switch Heating Film Optional Trip Unit Optional

Start-Stop BMS

For passenger vehicles, commercial vehicles and starting battery systems

High-current start-stop BMS with strong inrush current capability, cold-weather support, one-key forced start and isolated communication.

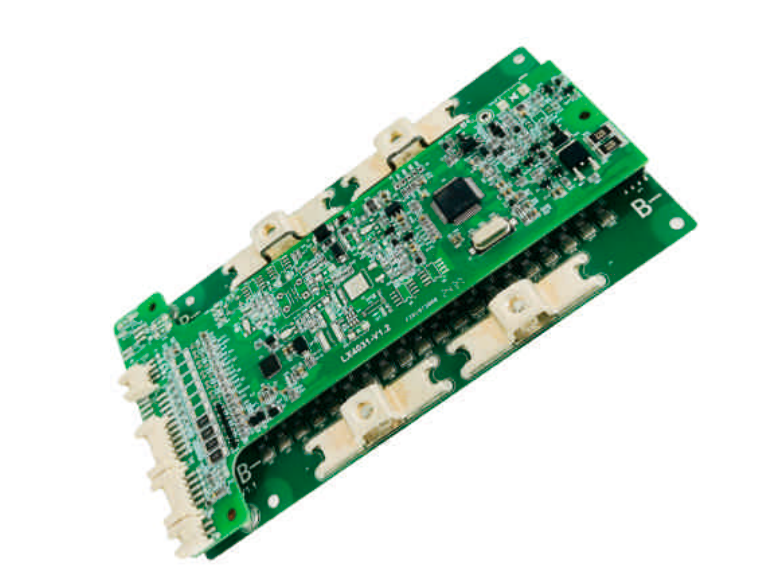

JunPowerTech LX4031 high current start-stop BMS for vehicle starting battery systems

LX4031-V1.1

Start-Stop BMS

  • Dimensions: 155 × 80 × 10 mm
  • Series: 4–10S
  • Continuous current: 50–200A
  • Inrush current: 800–2400A, 8–10 seconds
  • CAN communication
  • One-key forced start function

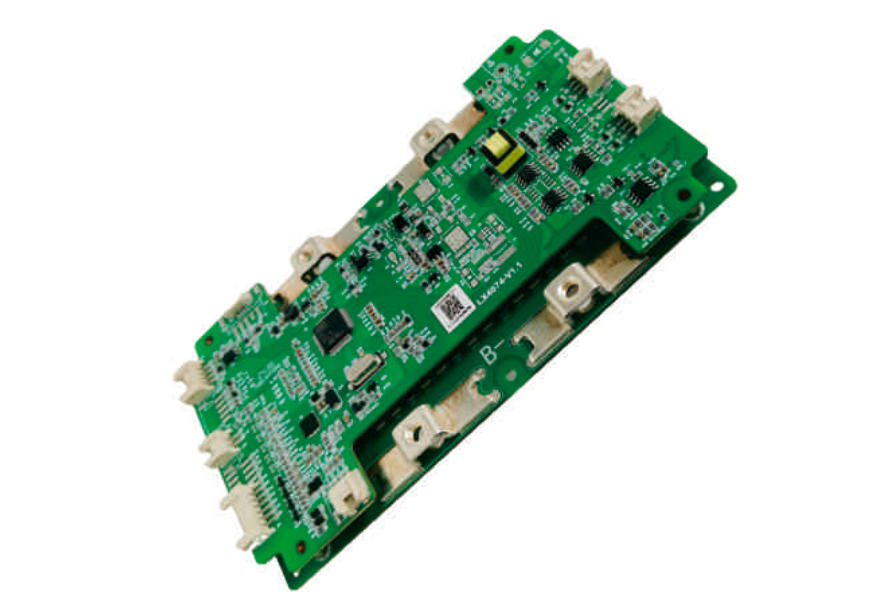

JunPowerTech LX4074 start-stop BMS with CAN and RS485 communication

LX4074-V1.1

Start-Stop BMS

  • Dimensions: 160 × 85 × 15 mm
  • Series: 4–10S
  • Continuous current: 50–200A
  • Inrush current: 800–2400A, 8–10 seconds
  • 2 × RS485, 1 × CAN communication
  • Optional buzzer, heating film, trip unit and LCD
Cold Weather Operation High Inrush Current One-Key Forced Start Remote OTA Optional Mini Program / BLE / Wi-Fi / 4G-GPS

Two / Three-Wheel Vehicle BMS

For electric bicycles, scooters, motorcycles and tricycles

BMS products for 48V, 60V and 72V electric vehicle applications, supporting high-side MOS design, communication, GPS/BDS options and reliable power output.

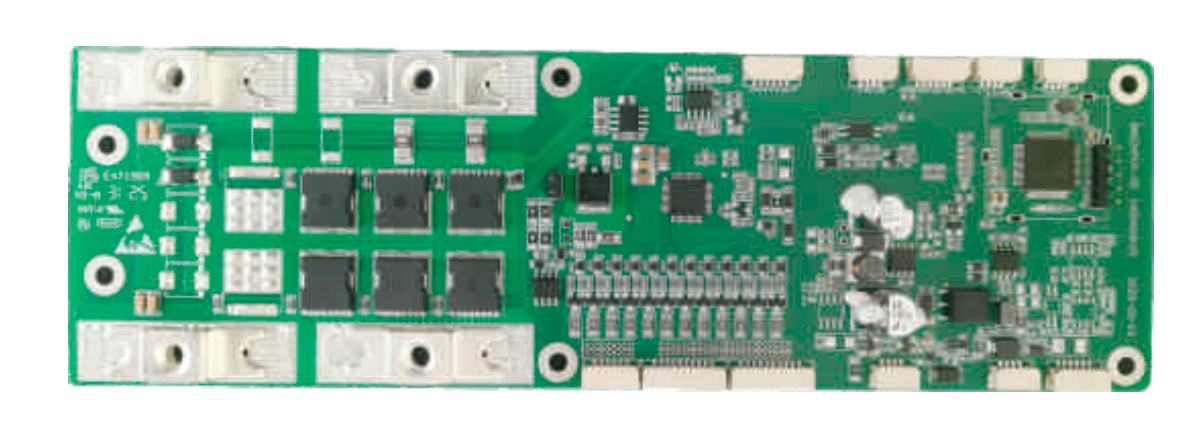

JunPowerTech BMS-24X04 two and three-wheel vehicle BMS for electric bikes and scooters

BMS-24X04-01A

Two / Three-Wheel Vehicle BMS

  • Compatible with 8–24S batteries
  • High-side MOS same-port output
  • One-wire communication
  • CAN / RS485 dual bus
  • OTA support and cold-start capability at -40°C
  • Application: 48V30A / 60V30A / 72V30A

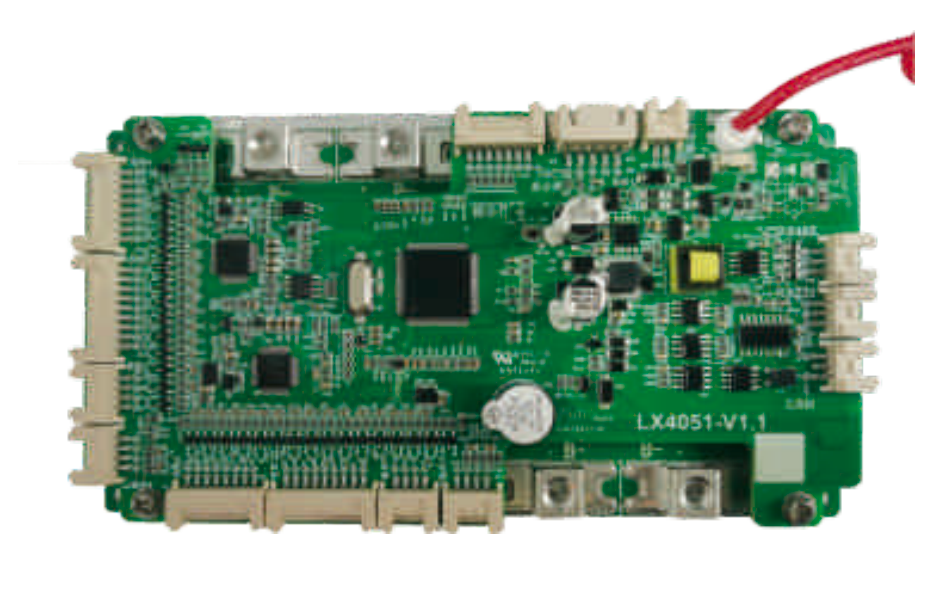

JunPowerTech LX4051 electric motorcycle BMS for 16S to 32S lithium battery packs

LX4051-V1.1

Electric Motorcycle BMS

  • Dimensions: 160 × 85 × 20 mm
  • Supports 16–32S lithium-ion and sodium-ion cells
  • Continuous current: 50–150A
  • 8 temperature detection points
  • CAN / RS232 / RS485 communication
  • External LED power level display

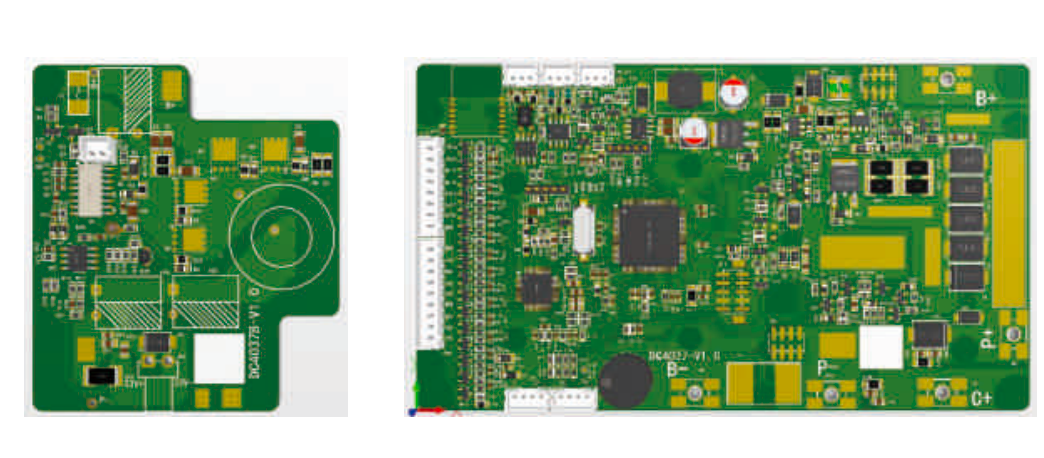

JunPowerTech LX4037 two-wheeler BMS with GPS and Bluetooth support

LX4037-15S30A-V1.1

Two-Wheeler BMS

  • Dimensions: 142 × 80 × 30 mm
  • Supports 7–16S lithium battery management
  • RS485 communication interface
  • Bluetooth module support
  • BDS / GPS positioning
  • 33V / 3A DC-DC output and data logging

Robotics BMS

For AGV / AMR, service robots, outdoor inspection robots and medical assistive robots

High-reliability BMS systems for robotics and mobile equipment, including main power BMS and backup power BMS for continuous operation and return-to-charge scenarios.

JunPowerTech LX4075 robotics BMS with CAN and RS485 communication

LX4075-V1.0

Main BMS for Robot Power

  • Dimensions: 255 × 90 × 33 mm
  • Series: 8–16S
  • Same port design
  • Charge current: 50–80A
  • Discharge current: 30–50A
  • 1 × RS485, 1 × CAN communication
  • UL, CE, RoHS certification

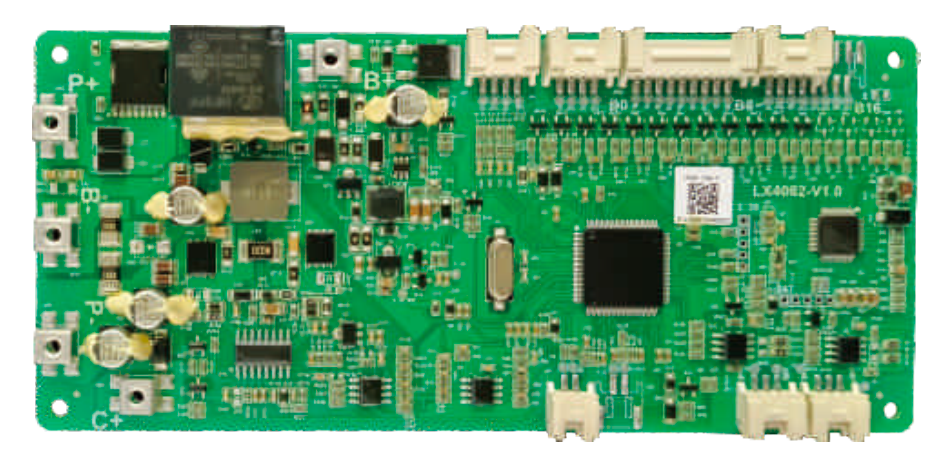

JunPowerTech LX4082 robot backup power BMS for low-power battery systems

LX4082-V1.0

Robot Backup Power BMS

  • Dimensions: 155 × 70 × 20 mm
  • Series: 8–12S
  • Different port design
  • Charge current: 5A
  • Discharge current: 1A
  • 2 × RS485 communication
  • UL, CE, RoHS certification
Dual Protection Low-Power Backup System Data Logging Sleep Management Mini Program / BLE / Wi-Fi / 4G

Ship BMS

For marine energy storage and ship battery systems

Intelligent BMS for marine energy storage applications, supporting independent charge/discharge ports, watchdog protection, secondary protection and heating film control.

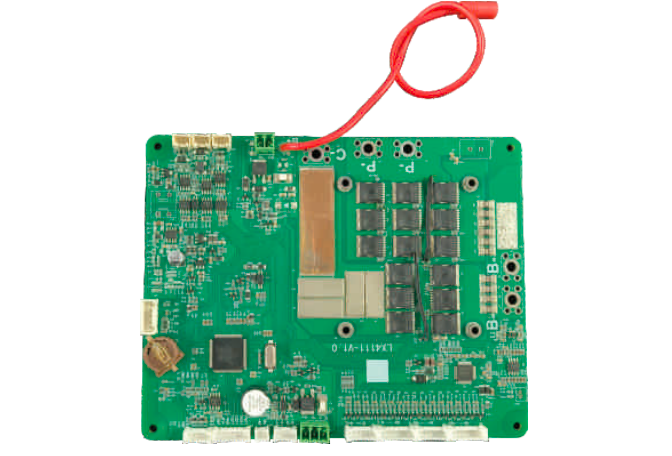

JunPowerTech LX4111 marine energy storage BMS with CAN and RS485 communication

LX4111-V1.0

Marine Energy Storage BMS

  • Dimensions: 255 × 90 × 33 mm
  • Series: 8–16S
  • Different charging and discharging ports
  • Charge current: 40A
  • Discharge current: Max 150A
  • 2 × RS485, 1 × CAN communication
  • Optional buzzer, heating film, trip unit, LCD and external LED indicators
Marine Power NMC / LFP / SIB Low-Voltage Switch Auto Addressing Mini Program / BLE / Wi-Fi / 4G

Need Help Matching the Right BMS?

Send your battery chemistry, voltage, series number, charge/discharge current, communication protocol and application scenario. We will help you match suitable BMS models and prepare technical discussion points.

Send Your Requirement →
